Double working power
immersion basket mill
DUAL FORCE double working power immersion Basket Mills are outstanding energy-efficient and ultra-fine grinding machines.
This system is designed taking advantage of the double force of two independent engines with separate drives for grinding and mixing. The special design allows to optimize product circulation inside the vessel taking care of different flow behavior without changing the grinding maximum allowed speed.
Equipped with an energy-efficient grinding chamber and two lateral agitators, they can grind large batches up to 1500 lt and reduce total energy consumption, grinding time and the number of microspheres used compared to similar machines.
—————————————– ADVANTAGES
— ADVANTAGES
■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality
■ Continuous process control thanks to internal PLC
■ Total integration with the production flow and the company ERP
■ Efficient recipe management, high product repeatability and reduction of production waste
■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators
■ Remote assistance for immediate customer support
■ Larger batches with low engine power (1000 L with 30 kW)
■ Processing products with a wide range of viscosities
■ Grinding time reduced by up to 50%
■ Simple mounting, easy to maintain and inspect
■ Fine grinding and narrow particle size distribution
■ Cleaning time reduced by 60%
■ Energy savings of up to 40%
■ 70% fewer microspheres
■ Coated grinding chamber for controlled temperature processing
—————————————– TECHNICAL FEATURES
—TECHNICAL FEATURES
■ AISI 304 stainless steel supporting structure with anti-vibration reinforcements
■ High thickness base plate to fix the machine to the floor
■ Rectified and chromed steel telescopic head holder column
■ High thickness sheet metal head with anti-vibration reinforcements and pulley protection casings
■ Transmission by belt and pulleys
■ Hydraulic lifting unit with electric pump embedded in the command group
■ Head ascent stop with safety device
■ Shaft support with high performance ball bearings
■ AISI 304 stainless steel main grinding shaft
■ Efficient cooling cavities without hot spots
■ Product temperature control sensor inside the grinding chamber

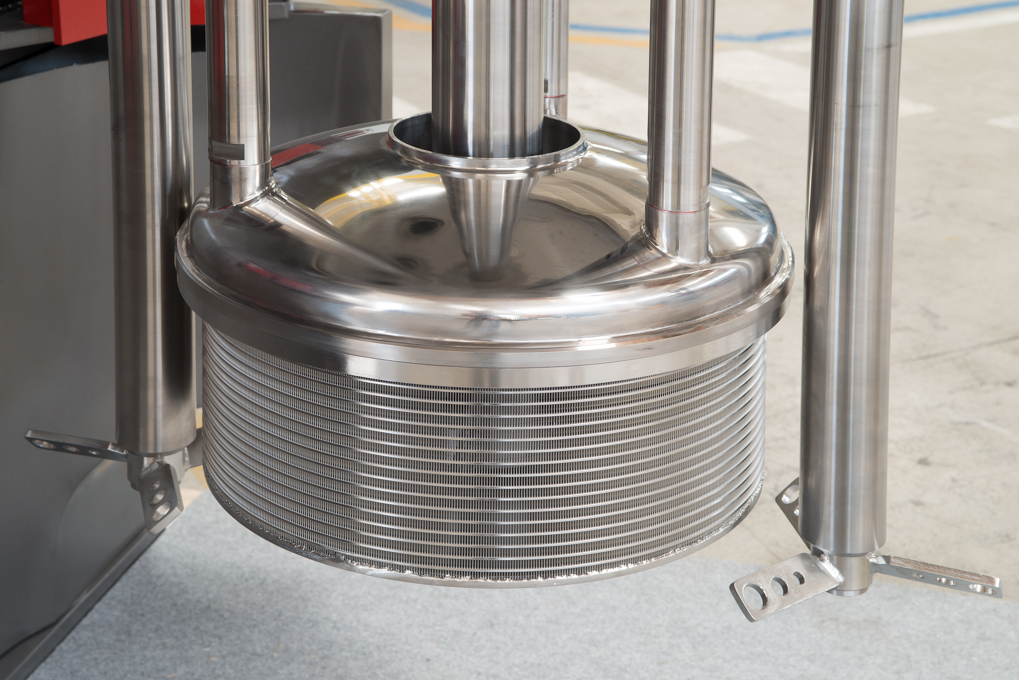

■ Wear-resistant electro-weed mesh milling chamber with different peg impellers

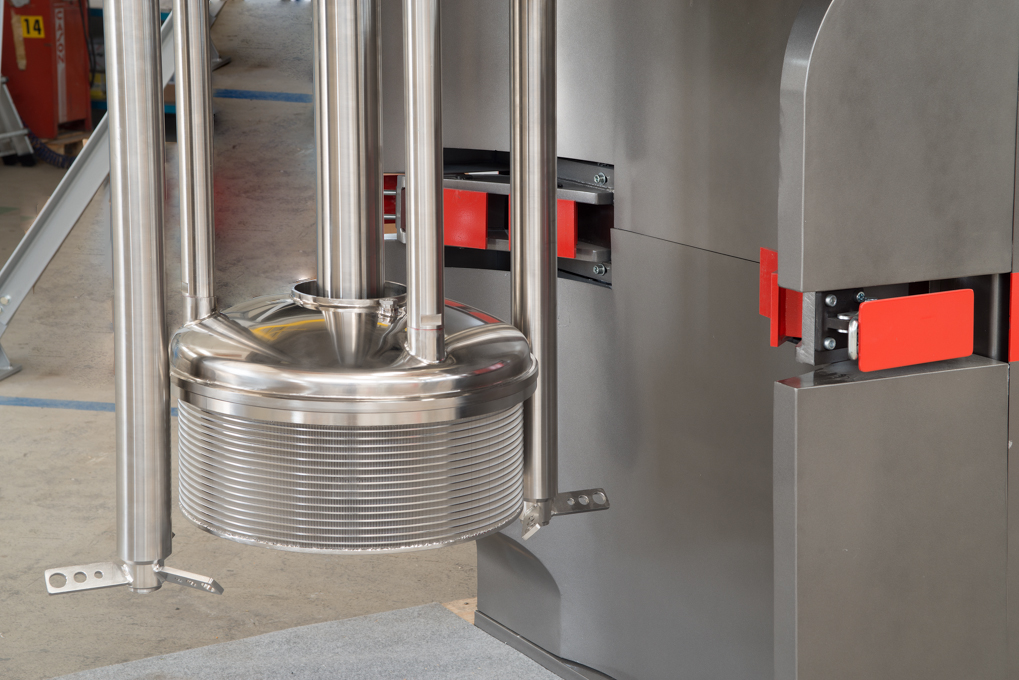

■ Two AISI 304 stainless steel lateral mixing shafts
■ Two AISI 304 stainless steel mixing impellers
■ Efficient cooling cavities without hot spots
■ Product temperature control sensor inside the grinding chamber
■ Vessel locking system:

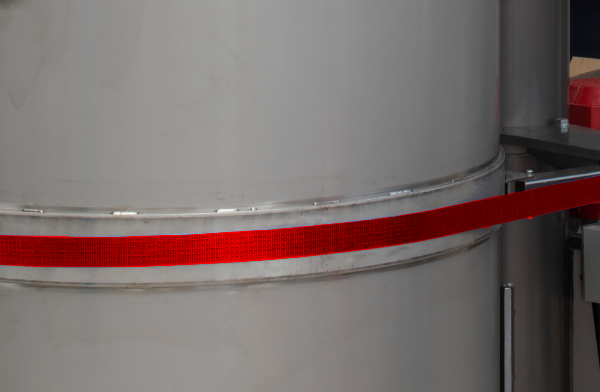

- Adjustable belt
Characterized by a support with adjustable saddles and tensioning ratchet. Possibility of fixing containers with different diameters

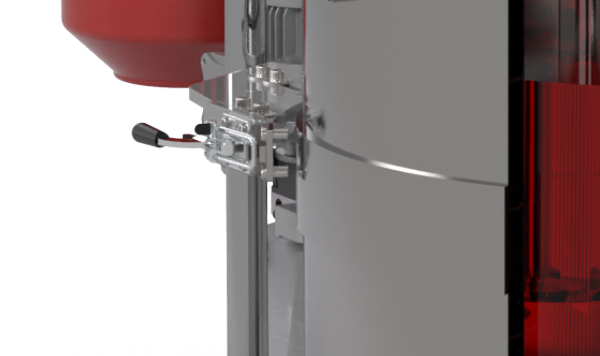

- Fast Dumping
Characterized by easy entering of the vessel, fast locking and high resistance to lateral loads. Manual locking clamps with safety micro-contact for machine start only when the container is blocked
■ Electronic speed variation with inverter
■ Also available in ATEX version
—————————————– FACTORY 4.0
— FACTORY 4.0
INDUSTRY 4.0 READY
■ Internal PLC for industrial process control

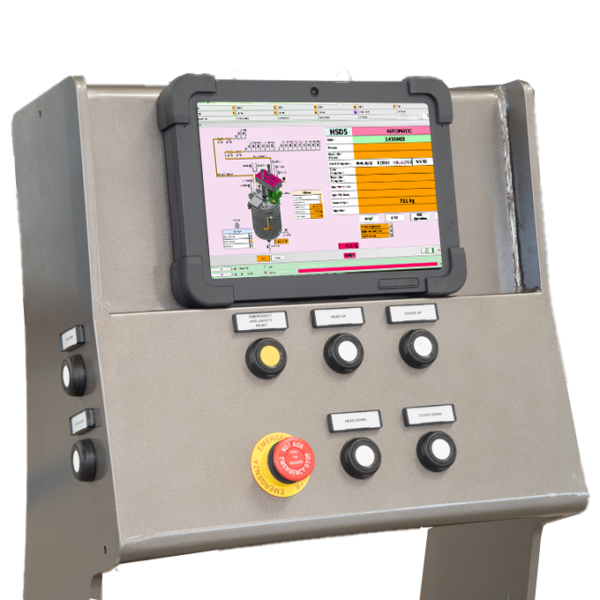

■ Intuitive operator touch interface
■ Ethernet connections
INDUSTRY 4.0 OPTIONAL
■ Wi-Fi operator control panel
■ Router for remote assistance
■ Latest generation MISURA software ERP
- Preventive Maintenace indicators
- OEE indicators
- Panel with digital pointers
- Software interface with customer
—————————————– CONFIGURATIONS
— CONFIGURATIONS

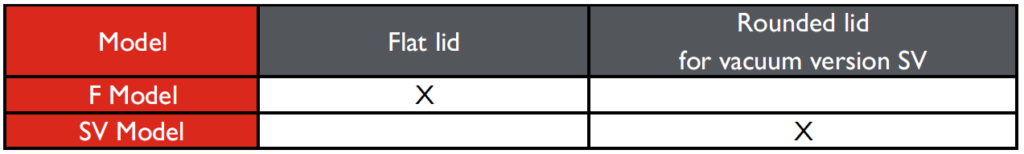

■ F version: Immersion basket and triple shaft, equipped with fixed lid for dust and vapor tight processing
■ SV version: Immersion basket and triple shaft, in vacuum version, equipped with a fixed convex lid for vacuum sealing
—————————————– TECHNICAL DATA
—TECHNICAL DATA
—————————————– APPLICATIONS
— APPLICATIONS
Paints, car finishing, inks
Colored and concentrated pastes, pigments for tannery
Plastic materials, gelcoats
Food products, agrochemicals
Cosmetic products
Paints, car finishing, inks
Colored and concentrated pastes, pigments for tannery
Plastic materials, gelcoats
Food products, agrochemicals
Cosmetics products
Case history: American Customer
“Dual Force cut down our total cycle time to less than half, without experiencing higher temperature.
Thanks to Dual Force we also saved 65% of energy consumption per batch, becoming more competitive and drastically improving our lead time to market”.
Case history: European Customer
“We apply Dual Force on industrial coating, where margins are tight and time- and cost-savings are a must. Dual Force is very efficient compared to standard basket mills, it sets a new standard for the coating industry”.
