Semi-automatic volumetric
batching machine

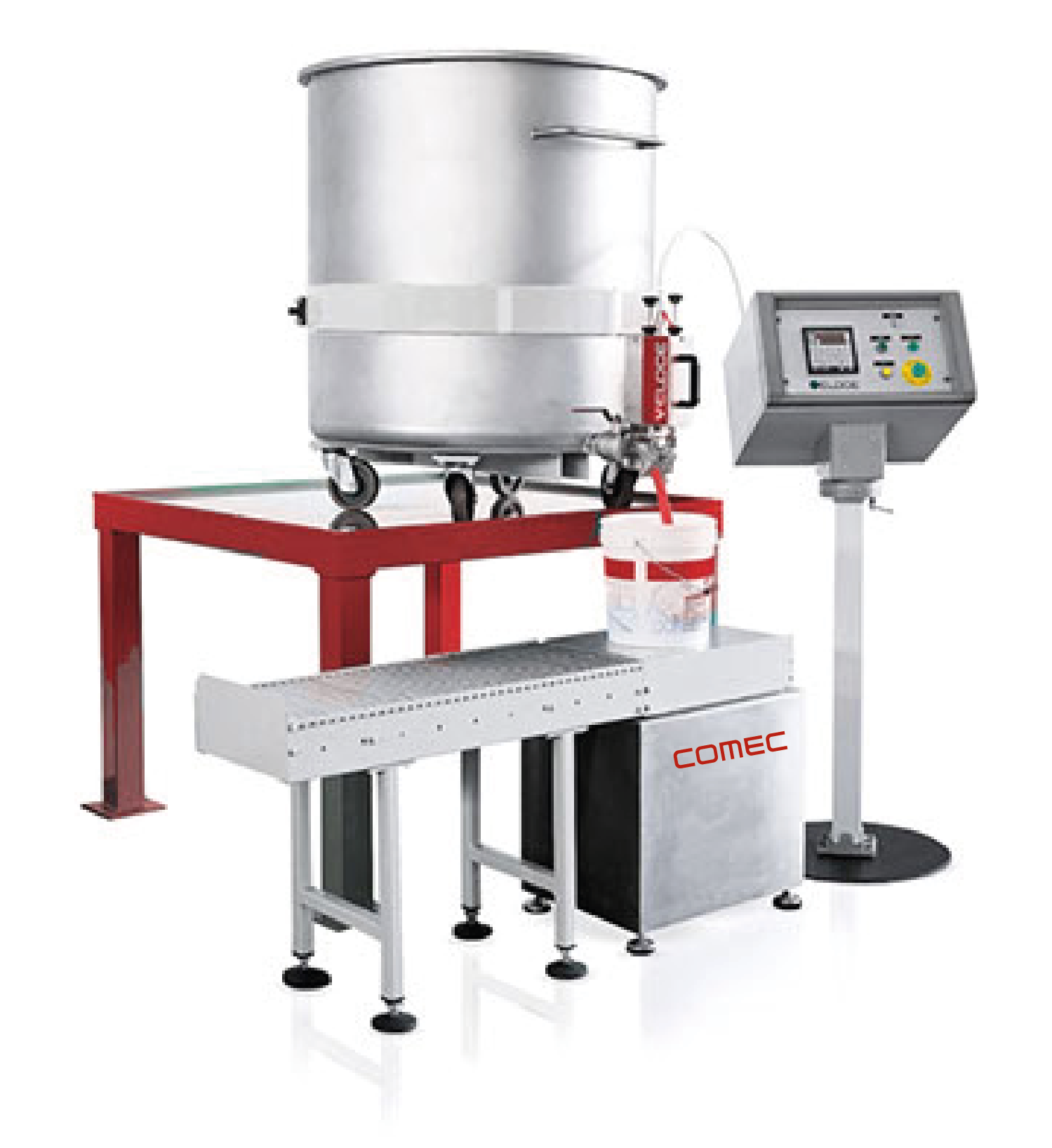

VELOCE Batching Systems are semi-automatic volumetric machines used for small tins of water and solvent based products from 5 to 40 kg packaging. The dosing head can be applied directly on the tap by means of a quick coupling and it provides a precise and over time consistent batching, facilitating container washing operations. Made of anti-wear materials, it can also be used with abrasive products.
—————————————– ADVANTAGES
■ Minimization of ready-made products stock
■ Great accuracy and dosing repeatability
■ Easy application of the dosing head to any container
■ Extremely quick and easy cleaning
—————————————– TECHNICAL FEATURES
■ Aluminum plate housing a double-acting pneumatic piston with protective casing
■ Steel frame painted with epoxy cycle, swivel wheels and stabilizing feet for easy handling

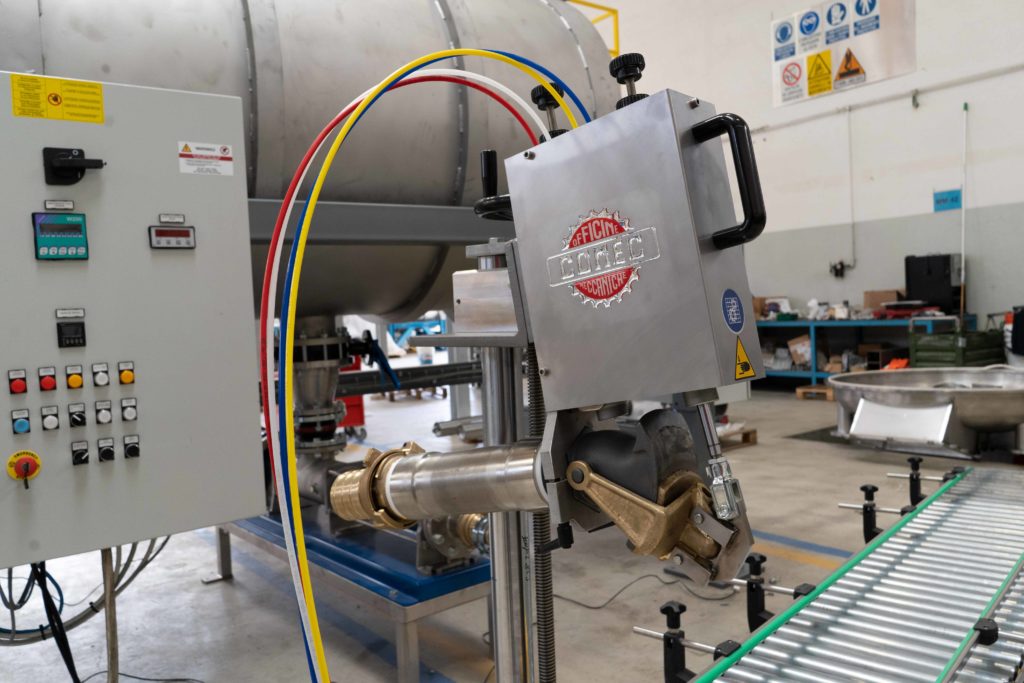

■ Weight dosing station with machined cast aluminum head
■ Piston travel regulation system
■ Electrical or mechanical scale
■ Two-stage shut-off dispensing valve for roughing and finishing:
- Mushroom
- Guillotine
- Perfect 2 or 3-inch
■ Quick coupling on perfect tap
■ AISI 304 stainless steel straight roller conveyor for vessel transportation
■ Batching start pedal
■ Control board for dosing management composed by a painted metal sheet electrical panel with cycle start button, valve opening button, emergency closure button and weight indicator
■ Also available in ATEX version
—————————————– ACCESSORIES
■ Accumulation hopper
■ Level control with float in AISI 304 stainless steel (in the presence of an accumulation hopper)
■ Anti-splash and anti-drop system
■ Stamping machine
■ Stapling pliers for closing the lid with wings
—————————————– TECHNICAL DATA
