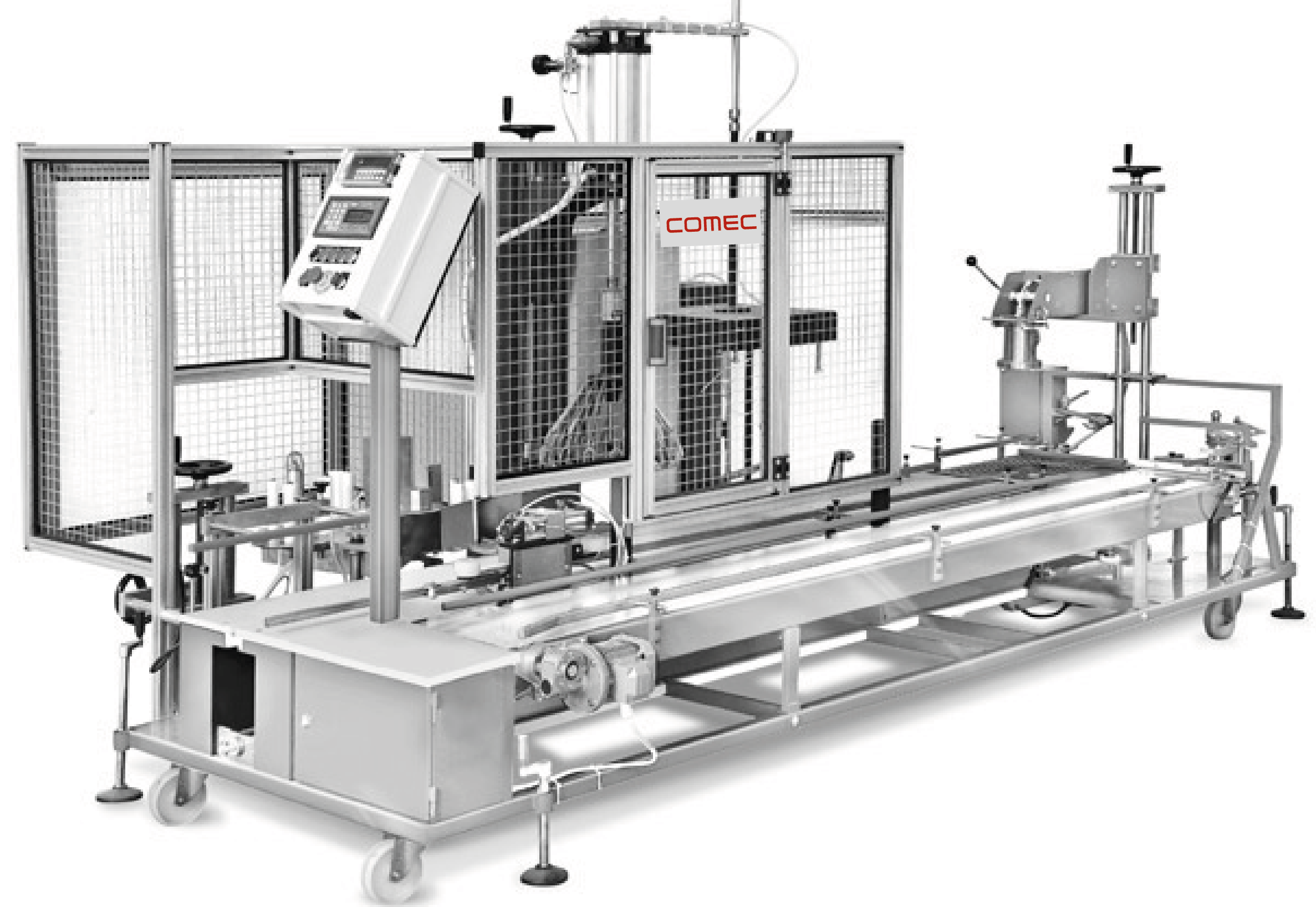

Rapida

Automatic filling machine

Rapida is an automatic gravimetric filling machine used for small tins of water and solvent based products from 5 to 40 kg packaging. Equipped with a bearing structure based on a single advancing step-by-step line to the different stations, it is a flexible packaging system that can be adapted to customer needs.

It can deliver up to 6 units/min.

Main advantages

  • Time and labor savings thanks to the automation of the packaging process
  • Increase in packaging speed and number of packages in a working day
  • Significantly reduced risk of contamination by external agents
  • Extremely quick and easy cleaning
  • Significant reduction in the risk of accidents
  • Minimization of stocks of ready-made products
  • Great accuracy and dosing repeatability

Technical Features

  • Painted and welded tubular steel base equipped with stabilizing height-adjustable feet and mounted on rotating wheels
  • AISI 304 stainless steel vessel sliding base
  • Aluminum plate housing double-acting pneumatic piston with protective casing
  • Carbon steel coated with epoxy paint protection grille
  • Empty feeding system by belt with electric motor, complete with vessel displacement arm synchronized with line advancement
  • Piston stroke adjustment system
  • Automatic feeding system for empty containers
  • Automatic stacking device suitable for metal and plastic lids equipped with a 45° tilted self-centering tank, movements on guides with ball bearings
  • Electrical or mechanical scale
  • Two-stage shut-off dispensing valve for roughing and finishing
  • AISI 304 stainless steel straight roller conveyor for vessel transportation
  • Control board for dosing management composed by a painted metal sheet electrical panel with cycle start button, valve opening button, emergency closure button and weight indicator
  • Also available in ATEX version

Accessories

  • Accumulation hopper
  • Level control with float in AISI 304 stainless steel (in the presence of an accumulation hopper)
  • Anti-splash and anti-drop system
  • Stamping machine
  • Second dispensing valve
  • Automatic destacker for plastic or metal lids
  • Painted electro-welded steel conveyor that connects the outlet from the packaging line to the labeling phase
  • Label applicator on the cylindrical surface of the can
  • Palletizing cell
