KYNESIS Dispersers are high-speed in-line dispersion systems.
Born to increase efficiency and fastness when making a powder slurry, our revolutionary high speed dispersing technology works according to the rotor-stator-principle.
The continuous in-line dispersion, thanks to its combined effect of different particle reduction, achieved a high shear gradient and a very fine distribution of solid particles (suspensions) and liquids (emulsions).
The wide range of rotors and stators allows you to manage a large variety of products of different viscosities and densities and the wide range of motors is able to satisfy every production need up to 200 kW.
This innovative system is simple to install and offers an easy integration into the existing process and a large range of applications, also in existing revamping processes.
■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality
■ Continuous process control thanks to internal PLC
■ Total integration with the production flow and the company ERP
■ Efficient recipe management, high product repeatability and reduction of production waste
■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators
■ Remote assistance for immediate customer support
■ High flexibility and versatility to cover a wide range of products, viscosities and thanks to different possible configurations in a single machine

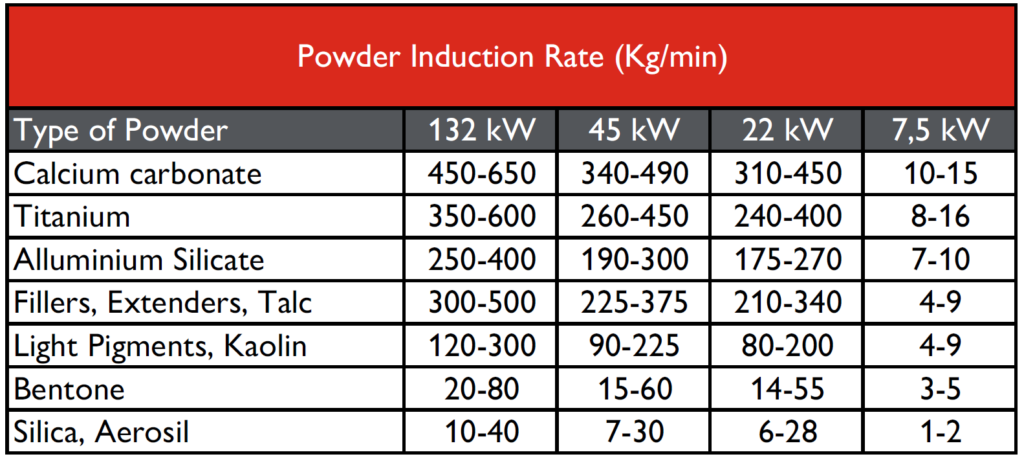

■ Impressive dust absorption speed
■ 40% to 70% energy saving compared to a traditional rotor-dynamic pump
■ No dust
■ Immediate dispersion during powder induction
■ Easy cleaning of the dispersing chamber with much reduced deadtime between different batches
■ Up to 90% cleaning agent reduction compared to a traditional disperser
■ Reduction of downtime between different batches
—————————————– TECHNICAL FEATURES
■ Low volume mixing chamber for the dispersion and mixing of powders and liquids at high output speed
■ Unit for wetting and dispersing powders
■ Wide range of rotors and stators in AISI 316 stainless steel to manage products characterized by different viscosities, densities, fineness of dispersion
■ Vacuum suction for rapid dust absorption
■ Automatic valve, resistant to suction above the mixing chamber to avoid wetting the powder inlet tubes
■ Electronic speed regulation by inverter
■ Components made of AISI 304 stainless steel
■ Components in contact with the product made of AISI 316 stainless steel
■ Self-lubricated mechanical seal
■ Surface treatments for high wear resistance inside the process chamber
■ Temperature sensor
■ Pressure sensor
■ Flow sensor
—————————————– INDUSTRY 4.0
INDUSTRY 4.0 READY
■ Internal PLC for industrial process control
■ Intuitive operator touch interface
■ Ethernet connections
INDUSTRY 4.0 OPTIONAL
■ Wi-Fi operator control panel
■ Router for remote assistance
■ Latest generation MISURA software ERP
- Preventive Maintenace indicators
- OEE indicators
- Panel with digital pointers
- Software interface with customer
—————————————– TECHNICAL DATA
————————– KYNESIS: SUCCESS STORIES
Case history: US Customer
“Thanks to Kynesis we replaced 4 traditional dissolvers and today we deliver paint to as much as 24 letdown tanks, just with one Kynesis only.
We avoided expensive mezzanine platforms and we kept everything at floor level.
We highly reduced our maintenance costs because Kynesis needs only few minutes per months. No need to enter into tanks to replace the cowles blade. And one rotor-stator gear lasts as much ad 9-10000 tons of grind paste.
Case history: European Customer
We work with a 45 KW Kynesis for high solid epoxy resins. The efficiency compared to traditional dissolvers is much higher.
The machine allows to get a very homogeneous mass that avoid filtering. Since its speed allows much higher throughput we have decided to install one unit connected to two existing mixers.
