TRIPLE SHAFT STATIONERY
MIXER DISPERSER

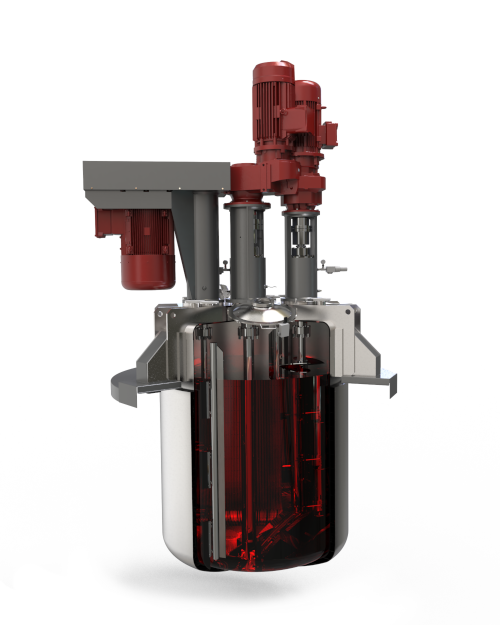

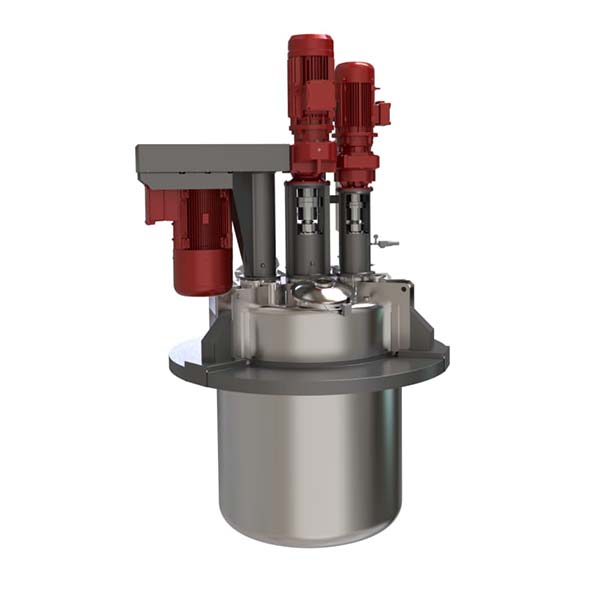

DYNAMIX DC stationery Mixers Dispersers are machines for medium and high viscosity products dispersion and mixing positioned on supporting platforms, engineered and manufactured to work in difficult industrial conditions. The processing cycle takes place inside closed vessels hanging on a platform or positioned on the ground. Equipped with a triple shaft, with a low-speed mixing shaft, a high-speed dispersion shaft and a scraping anchor shaft, also configurable in vacuum version, they can meet every production need thanks to a wide range of engines up to 250k. This allows to handle products with viscosities from 40,000 to 310,000 Cp and in batches up to 13,000 L.

—————————————– ADVANTAGES
— ADVANTAGES
■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality
■ Continuous process control thanks to internal PLC
■ Total integration with the production flow and the company ERP
■ Efficient recipe management, high product repeatability and reduction of production waste
■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators
■ Remote assistance for immediate customer support
—————————————– TECHNICAL FEATURES
—TECHNICAL FEATURES
High-speed dispersion group with:
■ High thickness sheet metal head with anti-vibration reinforcements and pulley protection casings
■ Transmission by belt and pulleys
■ Shaft support with high performance ball bearings
■ AISI 304 stainless steel lateral high-speed dispersion shaft
■ Height-adjustable impellers with head gliding during mixing
■ AISI 304 stainless steel Turbo type toothed impeller

■ AISI 304 stainless steel intermediate Cowles type impeller

Low-speed mixing group with helical screw with:
■ Shaft support with high performance ball bearings
■ AISI 304 stainless steel lateral low-speed mixing shaft
■ Gear motor with coaxial transmission directly coupled to the low-speed mixing shaft
■ Wendel type helical screw impeller
Scraping anchor shaft group with:
■ Shaft support with high performance ball bearings
■ AISI 304 stainless steel central shaft with AISI 304 stainless steel anchor scraper with adjustable blades
■ Gear motor with coaxial transmission directly coupled to the scraping anchor shaft
■ AISI 304 stainless steel welded-top vessel with rounded bottom with cylindrical construction and vertical axis
■ Different dust and liquid supply systems integrated in the lid
■ Electronic speed variation with inverter
■ Also available in ATEX version
—————————————– FACTORY 4.0
— FACTORY 4.0
INDUSTRY 4.0 READY
■ Internal PLC for industrial process control
■ Intuitive operator touch interface
■ Ethernet connections
INDUSTRY 4.0 OPTIONAL
■ Wi-Fi operator control panel
■ Router for remote assistance
■ Latest generation MISURA software
- Preventive Maintenace indicators
- OEE indicators
- Panel with digital pointers
- Software interface with customer ERP

—————————————– ACCESSORIES
—ACCESSORIES
■ Hydraulic lifting unit with electric pump embedded in the command group
■ Servo-ventilated engine for main engine forced cooling
■ Reinforced vessel with cavities for cooling and with external insulation for heating
■ Mirror-polished or coated with wear-resistant material vessel’s inner wall
■ Product temperature sensor integrated into the shaft
■ Level sensor (Encoder)
■ Foam sensor
■ Safety pressure switch
■ Working cycle timer
■ Possibility of installing a second high-speed dispersion group in place of the low-speed mixing group
■ Cup impeller, replacing Cowles impeller, in case of high viscosity and density products in particular for loaded products

■ Possibility to unload the product in over-pressure execution for vacuum versions
■ Weighing platform system integrated in the vessel anchoring system
■ Washing system (only in case of a rounded lid with lid-container locking clamps):
- Rotating heads fixed on the lid

- Motorized immersion lance with rotating washing head
—————————————– CONFIGURATIONS
— CONFIGURATIONS
■ F version: Triple shaft, equipped with a fixed lid for dust and vapor-tight processing
■ SV version: Triple shaft, equipped with a fixed rounded lid for vacuum sealing SV

—————————————– TECHNICAL DATA
—TECHNICAL DATA
—————————————– APPLICATIONS
— APPLICATIONS
Thick coatings (Epoxy,..)
Wall plasters
Glues, putties, sealants, adhesives,..
Plastic materials
Cosmetic products
