DYNAMIX MD2

STATIONARY VESSEL DISPERSER

Double shaft stationary mixer disperser

DYNAMIX MD2 stationery Mixers Dispersers are machines for medium and high viscosity products dispersion and mixing positioned on supporting platforms, engineered and manufactured to work in difficult industrial conditions. The processing cycle takes place inside closed vessels hanging on a platform or positioned on the ground. Equipped with a double shaft, with a low-speed mixing shaft and a high-speed dispersion shaft, also configurable with anchor scraper and in a vacuum version, they can meet every production need thanks to a wide range of engines up to 250kW. This allows to handle products with viscosities from 40,000 to 310,000 Cp and in batches up to 13,000 L

—————————————– ADVANTAGES

ADVANTAGES

■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality

■ Continuous process control thanks to internal PLC

■ Total integration with the production flow and the company ERP

■ Efficient recipe management, high product repeatability and reduction of production waste

■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators

■ Remote assistance for immediate customer support

—————————————– TECHNICAL FEATURES

TECHNICAL FEATURES

High-speed dispersion group with:

■ High thickness sheet metal head with anti-vibration reinforcements and pulley protection casings

■ Transmission by belt and pulleys

■ Shaft support with high performance ball bearings

■ AISI 304 stainless steel lateral high-speed dispersion shaft

■ Height-adjustable impellers with head gliding during mixing

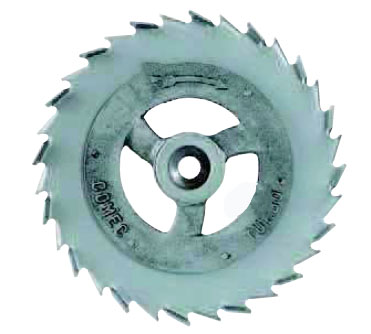

■ AISI 304 stainless steel Turbo type toothed impeller

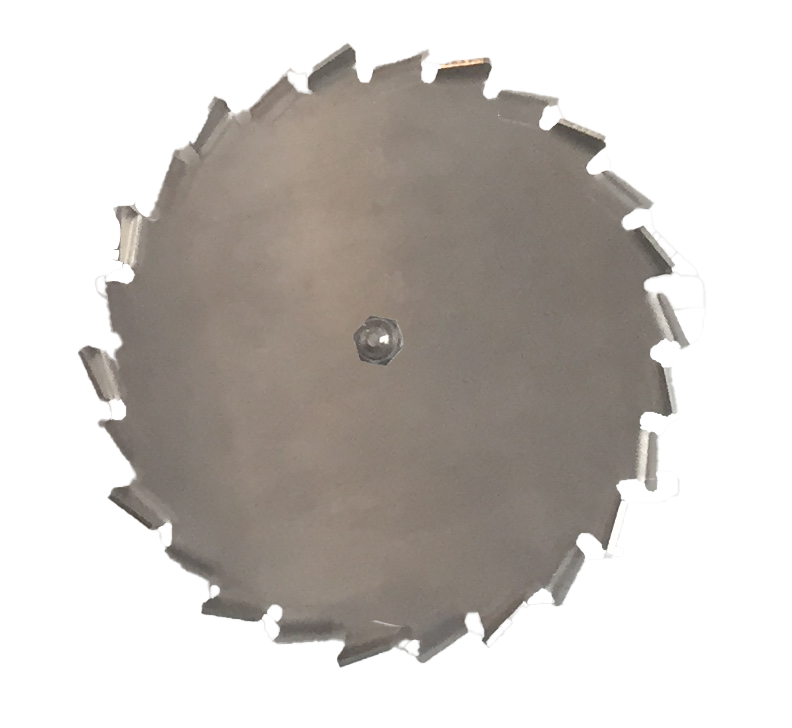

■ AISI 304 stainless steel intermediate Cowles type toothed impeller

Second shaft group with:

■ Shaft support with high performance ball bearings

■ AISI 304 stainless steel shaft withTurbo or Cowles type dispersing impellers or three-blades mixing impellers or with AISI 304 stainless steel anchor scraper with adjustable blades

■ Gear motor with coaxial transmission directly coupled to the low-speed mixing shaft (in presence of three-blades mixing impellers or anchor scraper)

■ Transmission by belt and pulleys (in presence of Turbo or Cowles type toothed impellers)

■ AISI 304 stainless steel welded-top vessel with rounded bottom with cylindrical construction and vertical axis

■ Different dust and liquid supply systems integrated in the lid

■ Electronic speed variation with inverter

■ Also available in ATEX version

—————————————– FACTORY 4.0

— FACTORY 4.0

INDUSTRY 4.0 READY

■ Internal PLC for industrial process control

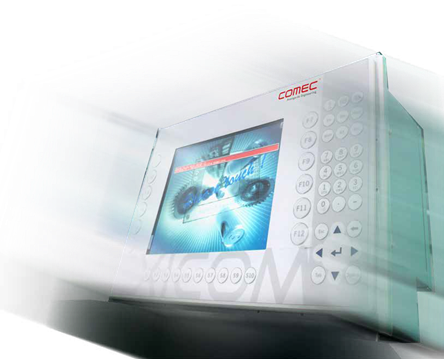

■ Intuitive operator touch interface

■ Ethernet connections

INDUSTRY 4.0 OPTIONAL

■ Wi-Fi operator control panel

■ Router for remote assistance

■ Latest generation MISURA software

  • Preventive Maintenace indicators
  • OEE indicators
  • Panel with digital pointers
  • Software interface with customer ERP

—————————————– ACCESSORIES

ACCESSORIES

■ Hydraulic lifting unit with electric pump embedded in the command group

■ Servo-ventilated motor for forced cooling

■ Reinforced vessel with cavities for cooling and with external insulation for heating

■ Mirror-polished or coated with wear-resistant material vessel’s inner wall

■ Product temperature sensor integrated into the shaft

■ Level sensor (Encoder)

■ Foam sensor

■ Safety pressure switch

■ Work cycle timer

■ Possibility to unload the product in over-pressure execution for vacuum versions

■ Cup impeller, replacing Cowles impeller, in case of high viscosity and density products in particular for loaded products

■ Weighing platform system integrated in the vessel anchoring system

■ Washing system (only in case of a rounded lid with lid-container locking clamps):

  • Rotating heads fixed on the lid
  • Motorized immersion lance with rotating washing head

—————————————– CONFIGURATIONS

CONFIGURATIONS

F version: Double shaft, equipped with a fixed lid for dust and vapor-tight processing

RI version: Double shaft with anchor scraper RI, equipped with a fixed lid for dust and vapor-tight processing

SV version: Double shaft, equipped with a fixed rounded lid for vacuum sealing SV

RI-SV version: Double shaft with anchor scraper RI, equipped with a fixed rounded lid for vacuum sealing SV

—————————————– TECHNICAL DATA

—————————————– APPLICATIONS

APPLICATIONS

Thick coatings (Epoxy,..)

Wall plasters

Adhesives

Plastic materials

Thick coatings (Epoxy,..)

Wall plasters

Adhesives

Plastic materials
