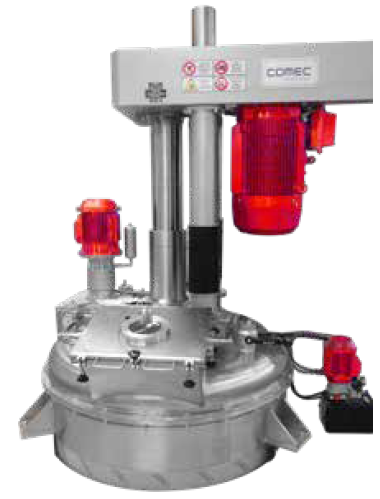

DYNAMIX MD

STATIONARY VESSEL DISPERSER

Single shaft stationary mixer disperser

DYNAMIX MD stationery Mixers Dispersers are machines for low and medium viscosity products dispersion and mixing positioned on supporting platforms, engineered and manufactured to work in difficult industrial conditions. The processing cycle takes place inside closed vessels hanging on a platform or positioned on the ground. Equipped with a single shaft, also configurable with scraper and in vacuum version, they can meet every production need thanks to a wide range of motors up to 250kW. This allows to handle products with viscosities from 1,000 to 200,000 Cp and in batched up to 13,000 L.

—————————————– ADVANTAGES

ADVANTAGES

■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality

■ Continuous process control thanks to internal PLC

■ Total integration with the production flow and the company ERP

■ Efficient recipe management, high product repeatability and reduction of production waste

■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators

■ Remote assistance for immediate customer support

—————————————– TECHNICAL FEATURES

TECHNICAL FEATURES

■ High thickness sheet metal head with anti-vibration reinforcements and pulley protection casings

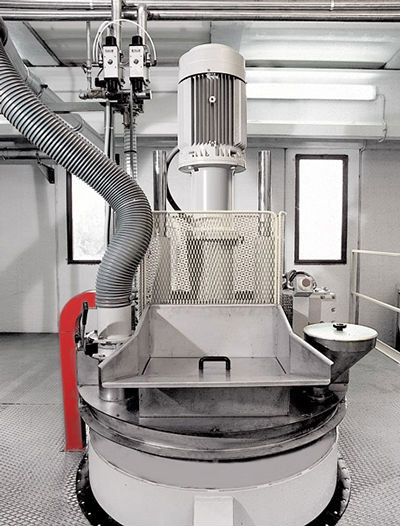

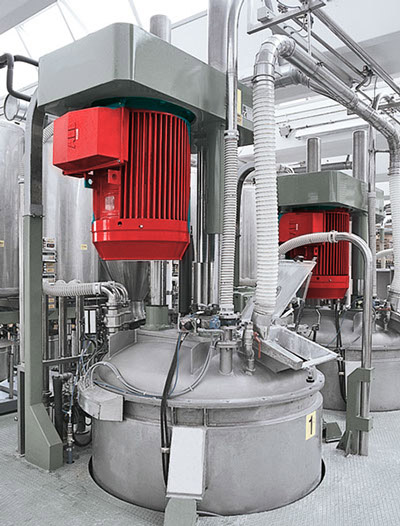

■ Transmission by belt and pulleys or coaxial

■ Hydraulic lifting unit with electric pump embedded in the command group

■ Shaft support with high performance ball bearings

■ AISI 304 stainless steel high-speed dispersion shaft

■ AISI 304 stainless steel Turbo type toothed impeller

■ AISI 304 stainless steel Turbo type (reduced) toothed impeller positioned on the bottom to facilitate the unloading of the product during the packaging phase

■ AISI 304 stainless steel intermediate Cowles type toothed impeller

■ Height-adjustable impellers with head gliding during mixing

■ AISI 304 stainless steel open or welded-top vessel with rounded bottom with cylindrical construction and vertical axis

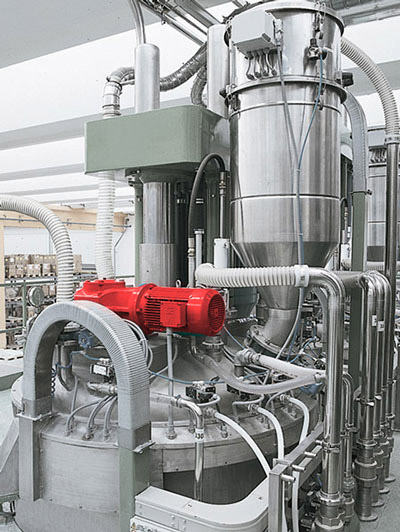

■ Different dust and liquid supply systems integrated in the lid

■ Electronic speed variation with inverter

■ Also available in ATEX version

—————————————– FACTORY 4.0

— FACTORY 4.0

INDUSTRY 4.0 READY

■ Internal PLC for industrial process control

■ Intuitive operator touch interface

■ Ethernet connections

INDUSTRY 4.0 OPTIONAL

■ Wi-Fi operator control panel

■ Router for remote assistance

■ Latest generation MISURA software

  • Preventive Maintenace indicators
  • OEE indicators
  • Panel with digital pointers
  • Software interface with customer ERP

—————————————– ACCESSORIES

ACCESSORIES

■ AISI 304 stainless steel motorized internal scraper with double arm with high resistance to torsion profiles, fixed to the output shaft of the gearmotor and operating on the entire surface of the vessel

■ Servo-ventilated engine for main engine forced cooling

■ Vessel with cavities for cooling and with external insulation for heating

■ Truncated cone-shaped vessel

■ Mirror-polished or coated with wear-resistant material vessel’s inner wall

■ Product temperature sensor integrated into the shaft

■ Level sensor (Encoder)

■ Foam sensor

■ Safety pressure switch

■ Work cycle timer

■ Possibility to unload the product in over-pressure execution for vacuum versions

■ Cup impeller, replacing Cowles impeller, in case of high viscosity and high density products with quartz and sand

■ Weighing platform system integrated in the vessel anchoring system

■ Washing system:

  • Rotating heads fixed on the lid
  • with motorized immersion lance with rotating washing head

—————————————– CONFIGURATIONS

CONFIGURATIONS

F version: Single shaft, equipped with a fixed lid for dust and vapor-tight processing

RI version: Single shaft with double arm internal motorized scraper RI, equipped with a fixed lid for dust and vapor-tight processing

SV version: Single shaft and in vacuum version, equipped with a fixed rounded lid for vacuum sealing SV

RISV version: Single shaft with double arm internal motorized scraper RI, equipped with a fixed rounded lid for vacuum sealing SV

—————————————– TECHNICAL DATA

TECHNICAL DATA

—————————————– APPLICATIONS

APPLICATIONS

Paints, water-based paints, enamel, lacquers, inks

Thick coatings, Epoxy products

Glues, putties, sealants, adhesives,..

Plastic materials, gelcoat, plastisol

Cosmetic products

Paints, water-based paints, enamel, lacquers, inks

Thick coatings, Epoxy products

Glues, putties, sealants, adhesives,..

Plastic materials, gelcoat, plastisol

Cosmetic products
