DYNAMIX DCLV

 MOBILE VESSEL DISPERSER

Low speed – high speed double shaft
mobile vessel disperser

DYNAMIX DCLV low speed-high speed mobile vessel Dispersers are machines for medium and high viscosity products dispersion and mixing, engineered and manufactured to work in difficult industrial conditions. Equipped with a double shaft, with a high-speed dispersion shaft and a low-speed mixing shaft with scraping blades, which can also be configured in vacuum version, they can meet every production need thanks to a wide range of engines up to 110 kW. This allows to manage products with viscosity from 50,000 Cp up to 1,000,000 Cp and in batches up to 3,000 L.

—————————————– ADVANTAGES

ADVANTAGES

■ Innovative technology enabling industry 4.0 that optimizes business processes in terms of management time, costs and quality

■ Continuous process control thanks to internal PLC

■ Total integration with the production flow and the company ERP

■ Efficient recipe management, high product repeatability and reduction of production waste

■ Minimization of breakdowns and unwanted downtime by predictive maintenance indicators

■ Remote assistance for immediate customer support

■ Special design allowing for an easy maintenance of the transmission system

—————————————– TECHNICAL FEATURES

TECHNICAL FEATURES

■ Carbon steel supporting structure with anti-vibration reinforcements

■ Rectified and chromed steel telescopic head holder column

■ High thickness sheet metal head with anti-vibration reinforcements and pulley protection casings

■ Transmission by belt and pulleys

■ Hydraulic lifting unit with electric pump embedded in the command group

High speed dispersion shaft with:

■ Shaft support with high performance ball bearings

■ AISI 304 stainless steel high-speed dispersion shaft

■ Main engine coaxial to the high-speed dispersion shaft

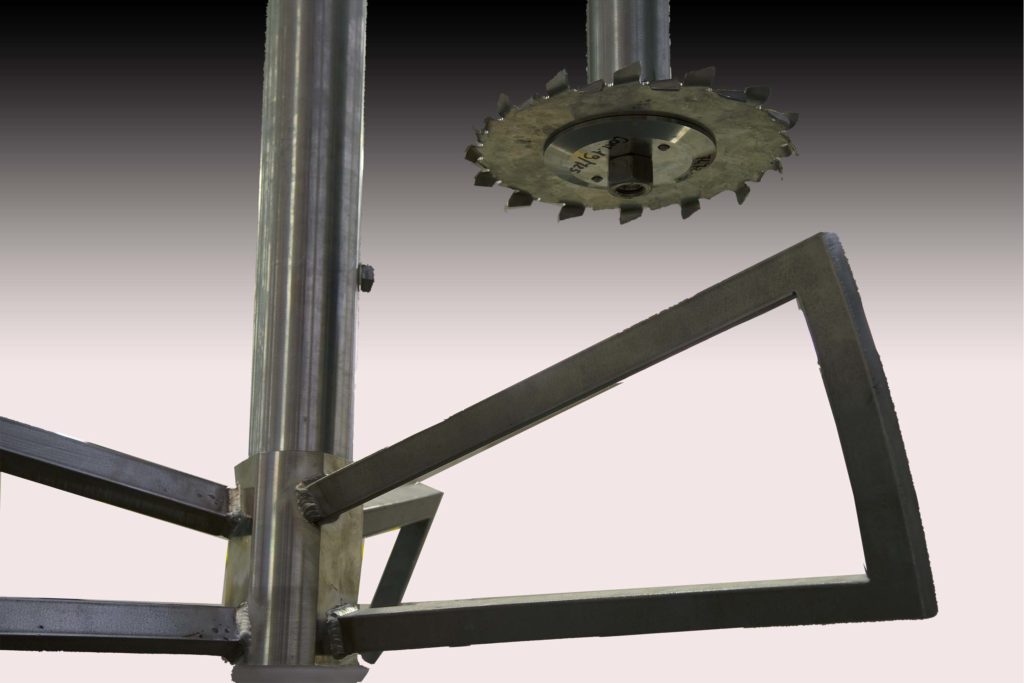

■ AISI 304 stainless steel Cowles type toothed impeller

Low-speed mixing shaft with:

■ Shaft support with high performance ball bearings

■ AISI 304 stainless steel low-speed mixing shaft

■ Gear motor directly coupled to the low-speed mixing shaft

■ Three scraping blades applied to the butterfly impeller by a AISI 304 stainless steel structure

■ AISI 304 stainless steel butterfly impeller

■ Height-adjustable impellers with head gliding during mixing

■ Different dust and liquid supply systems integrated in the lid

■ Vessel locking system:

  • Fast Dumping

Characterized by easy entering of the vessel, fast locking and high resistance to lateral loads. Manual locking clamps with safety micro-contact for machine start only when the container is blocked

  • Double Centering Arm

Characterized by fork opening of the arms with automatic centering of the vessel under the dispersion impeller while the support saddles facilitate the correct positioning of the vessel. The worm screw with increased thread guarantees an easy opening and closing of the locking. High resistance to lateral loads. Possibility of fixing vessels with different diameters

■ Lids

  • Flat lid for multiple vessels diameters
  • Under-vacuum lid

■ Electronic speed variation with inverter

■ Also available in ATEX version

—————————————– FACTORY 4.0

— FACTORY 4.0

INDUSTRY 4.0 READY

■ Internal PLC for industrial process control

■ Intuitive operator touch interface

■ Ethernet connections

INDUSTRY 4.0 OPTIONAL

■ Wi-Fi operator control panel

■ Router for remote assistance

■ Latest generation MISURA software

  • Preventive maintenance indicators
  • OEE (Overall Equipment Effectiveness) indicators
  • Panel with digital pointers
  • Software interface with customer ERP

—————————————– ACCESSORIES

ACCESSORIES

■ Safety clamps for vacuum version machines

■ Lifting column with external fairing

■ Reinforced vessel with cavities for cooling and with external insulation for heating

■ Reinforced extruder-ready vessel

■ Servo-ventilated motor for forced cooling

■ Product temperature sensor integrated into the shaft

■ Safety pressure switch

■ Work cycle timer

■ Butterfly and ball valves for raw materials loading

■ Integrated weighing platform system through base with load cells

■ Cup impeller, replacing Cowles impeller, in case of high viscosity and density products in particular for loaded products

■ Washing system (only in case of a rounded lid with lid-container locking clamps):

  • Rotating heads fixed on the lid
  • Motorized immersion lance with rotating washing head

—————————————– CONFIGURATIONS

CONFIGURATIONS

F-G version: Double shaft, equipped with a height-adjustable lid G for dust and vapor-tight processing

SV-G version: Double shaft, equipped with a height-adjustable rounded lid G for vacuum sealing SV

—————————————– TECHNICAL DATA

TECHNICAL DATA

—————————————– APPLICATIONS

APPLICATIONS

Paints

Thick coatings (Epoxy,..)

Sealants, adhesives,..

Plasters, putties

Paints

Thick coatings (Epoxy,..)

Sealants, adhesives,..

Plasters, putties
